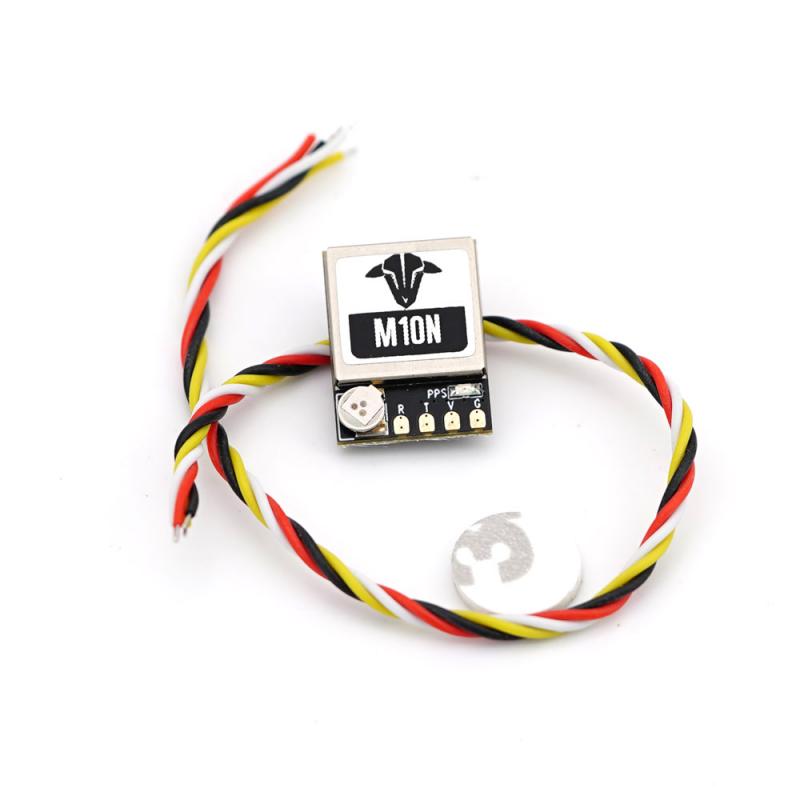

TBS M10N GPS Glonass

Specification:
Electrical Characteristics
Chip: M10050
Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN)
Default Position System: GPS, BDS, GALILEO
Augmentation System: SBAS, QZSS
Channel: N/A
Sensitivity
Tracking & Navigation: -166 dBm
Reacquisition: -160 dBm
Cold Start: -148 dBm
Hot Start: -160 dBm
Accuracy
Horizontal Position: 2.0 m CEP
Velocity: 0.05 m/s
Dynamic Heading: 0.3°
Time Pulse: RMS 30 ns / 99% within 60 ns
Acquisition
Cold Start: 27 s
Hot Start: 1 s
Aided Start: 1 s
Data Output
Baud Rate: 4800 – 921600 bps (default: 115200 bps)
Signal Level: TTL
Protocols: NMEA, UBX
UBX Messages: PVT
NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL
Update Rate: 0.25 Hz – 18 Hz (default: 10 Hz)
FLASH Memory: Retains configuration after power loss
Operational Limits
Altitude: 80,000 m
Velocity: 500 m/s
Dynamics: < 4 g
Power
Input Voltage: 3.6V – 5.5V (typical: 5.0V)
Power Consumption: 15 mA @ 5.0V
Physical
Dimensions: 16.5 × 12.3 × 6.0 mm
Weight: 3 g
Connector: 1.00 mm 4-pin connector
Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +105°C
LED Indicator
PPS LED: Off when no fix; flashes blue after 3D positioning, the blue light flashes
